2-User Portable Wireless System

Flightcom’s 2-User DECT7 Wireless Pushback System allows wireless communication between the tug operator and one wing walker while maintaining mission critical communication between the tug operator and the pilot.

SYSTEM

• 1.9GHz DECT7 wireless technology
• 1,600‐ft. line of sight transmission range

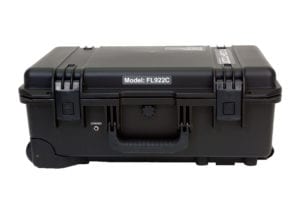

• System case for easy transportation and storage on and off the ramp
• Built‐in charging harness in system case

HEADSETS

• Hands‐free operation with programmable squelch
• No‐squelch push‐to‐talk
• 24‐hour rechargeable battery with a 4‐hour charge time
• Energy‐saving Sleep Mode: More than one year of shelf life without compromising the headset charge
• Simple on/off
• Multicolor LED indicators
• Automatic microphone level
• Battery capacity indicator at power‐on
• Audible and visual 2‐stage low‐battery warning
• Audible out‐of‐range warning
• Foam ear seals for hours of comfortable use
• Built in microphone muff improves clarity by eliminating wind noise
• Noise‐canceling electret microphone ensures optimal clarity
• Enhanced durability and comfort, designed to fit any head size
• Flexible microphone boom for accurate microphone positioning; move it once and it stays in place
• Microphone protected by a layer of waterproof material for outdoor use
• Secure push‐to‐talk button located on each dome for left‐ or right‐handed users
• Stereo listen‐through for situational awareness when the user needs it

COMHUB

• User‐replaceable coiled cable with Aircraft Interface Plug
• Simple on/off
• 24‐hour rechargeable battery with a 4‐hour charge time
• Weathertight connections and interface
• High visibility, water‐resistant, ballistic nylon ComHub bag with padding to protect the aircraft
• Complete system includes ComHub Bag, “Remove Before Flight” Flag, and Aircraft Hanger Hook
• High brightness LED power indicator
• Pilot Alert when the ground crew loses connection to the ComHub

FL611C AND FL612C HEADSETS

• Weight 17.8 oz 504 g
• Operating temperature ‐22°F to 140°F ‐30°C to 60°C
• Storage temperature ‐4°F to 122°F ‐20°C to 50°C
• Charging Temperature 32°F to 113°F 0°C to 45°C
• Noise Reduction Rating 24dB NRR
• Frequency Response 50Hz to 7kHz, ±3dB
• Max. Amb. Noise Level 125dB SPL re 20 uPa
• MIC Sensitivity ‐44 ±5dB, 0dB=1v/ Pa
• Noise Canceling Approximately 6.25 dB/octave from 3.4kHz down to 300Hz
• S/N Ratio 60dB
• Battery 3400mA rechargeable Lithium Ion
• Battery Life >24 hours at 25ºC
• Battery Protection Over voltage, under voltage, over current and over temperature charging
• Charge Jack 2.1mm x 5.5mm, Tip Positive, Barrel Type
• Charge Source 5VDC to 16VDC, 1.5A Max
• Charge Time 4 hours
• IP Rating IP‐66
• Colors: FL611 Blue, FL612 Red

DECT7 WIRELESS

• Protocol DECT7
• Frequency 1919.808 MHz to 1930.176 MHz
• Range 490m (1,600 feet) line‐of‐sight
• Regulatory FCC‐ & IC‐approved for use in the USA and Canada
• FCC RF Exposure (SAR) 0.003W/kg
• Security 35‐bit DECT Standard Cipher (DSC) for data encryption

FL82PC COMHUB

• Weight (with bag) 3.7 lb 1.7 kg
• Operating temperature ‐40°F to 149°F ‐40°C to 65°C
• Storage temperature ‐40°F to 149°F ‐40°C to 65°C
• Charging Temperature 14°F to 95°F ‐10°C to 35°C
• Battery 4 x 3400mA rechargeable lithium ion
• Battery Life 24 hours
• Charge Source 9VDC to 16VDC, 2A @ 12V

Charge Time 4 hours

IP Rating IP‐67

GENERAL

• Weight 21 lb 9.5 kg
• Dimensions 21.7″ x 14.1″ x 8.9″ 55.1 x 35.8 x 22.6 cm
